Step

Description

1

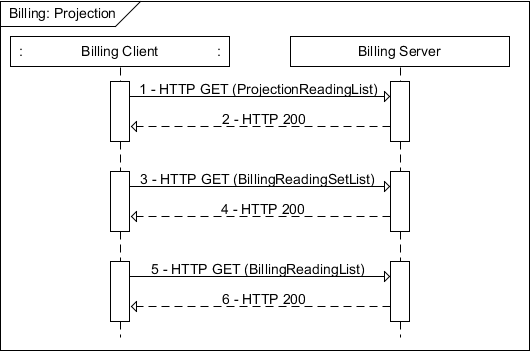

Client GETs the ProjectionReadingList from the Billing server. Client sends the following request:

GET /bill/1/ca/1/pro HTTP/1.1 Host: {hostname}

Accept: application/sep+xml

2

Billing server responds with the ProjectionReadingList. Server sends the following response:

HTTP/1.1 200 OK

Content-Type: application/sep+xml Content-Length: {contentLength}

<ProjectionReadingList all="2" href="/bill/1/ca/1/pro" results="1" xmlns="urn:ieee:std:2030.5:ns">

<ProjectionReading href="/bill/1/ca/1/pro/1">

<mRID>d0b05a2e65144fca0000e566</mRID>

<description>Billing Projections</description>

<BillingReadingSetListLink all="1" href="/bill/1/ca/1/pro/1/brs"/>

</ProjectionReading>

</ProjectionReadingList>

3

Client GETs the BillingReadingSetList from the Billing server. Client sends the following request:

GET /bill/1/ca/1/pro/1/brs?l=1 HTTP/1.1 Host: {hostname}

Accept: application/sep+xml

4

Billing server responds with the BillingReadingSetList. Server sends the following response:

HTTP/1.1 200 OK

Content-Type: application/sep+xml Content-Length: {contentLength}

<BillingReadingSetList all="1" href="/bill/1/ca/1/pro/1/brs" results="1" subscribable="1" xmlns="urn:ieee:std:2030.5:ns">

<BillingReadingSet href="/bill/1/ca/1/pro/1/brs/1">

<mRID>7cb8a5b136a9618e0000e566</mRID>

<description>Start Consumption Block 2</description>

<timePeriod>

<duration>2419200</duration>

<start>1360195200</start>

</timePeriod>

<BillingReadingListLink all="1" href="/bill/1/ca/1/pro/1/brs/1/br"/>

</BillingReadingSet>

</BillingReadingSetList>

5

Client GETs the BillingReadingList from the Billing server. Client sends the following request:

GET /bill/1/ca/1/pro/1/brs/1/br?l=1 HTTP/1.1 Host: {hostname}

Accept: application/sep+xml

Table C.19—POX example: Billing projection (continued)

Step

Description

6

Billing server responds with the BillingReadingList. Server sends the following response:

HTTP/1.1 200 OK

Content-Type: application/sep+xml Content-Length: {contentLength}

<BillingReadingList all="2" href="/bill/1/ca/1/pro/1/brs/1/br" results="1" xmlns="urn:ieee:std:2030.5:ns">

<BillingReading href="/bill/1/ca/1/pro/1/brs/1/br/1">

<consumptionBlock>2</consumptionBlock>

<qualityFlags>40</qualityFlags>

<timePeriod>

<duration>0</duration>

<start>1361664000</start>

</timePeriod>

<touTier>0</touTier>

<value>400000</value>

</BillingReading>

</BillingReadingList>
