Step

Description

1

(Same as Demand Response: General)

2

(Same as Demand Response: General)

3

(Same as Demand Response: General)

4

(Same as Demand Response: General)

5

(Same as Demand Response: General)

6

(Same as Demand Response: General)

7

(Same as Demand Response: General)

8

(Same as Demand Response: General)

9

(Same as Demand Response: General)

10

(Same as Demand Response: General)

11

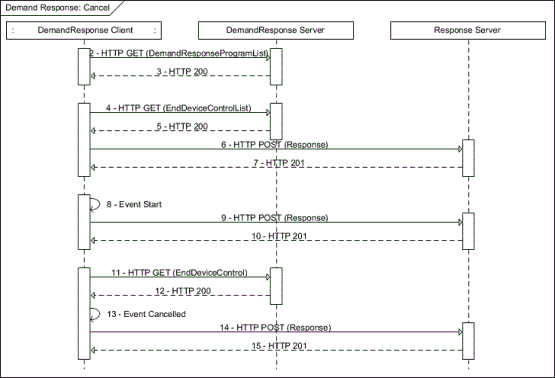

Client GETs a specific EndDeviceControl from the DRLC server to check on the current status of the event it’s executing. This should happen on a periodic basis to check if the control is cancelled.

Client sends the following request:

GET /drp/1/edc/3 HTTP/1.1 Host: {hostname}

Accept: application/sep+xml

12

DemandResponse server indicates the event is cancelled:

HTTP/1.1 200 OK

Content-Type: application/sep+xml Content-Length: {contentLength}

<EndDeviceControl href="/drp/1/edc" replyTo="{hostname}/rsp" responseRequired="01" subscribable="0" xmlns="urn:ieee:std:2030.5:ns">

<mRID>CAFEFEED</mRID>

<description>Emergency One Hour Coffee Brew</description>

<creationTime>1234556</creationTime>

<EventStatus>

<currentStatus>2</currentStatus>

<dateTime>1234960</dateTime>

<potentiallySuperseded>false</potentiallySuperseded>

<reason>Caffeine Overload</reason>

</EventStatus>

<interval>

<duration>360</duration>

<start>1234900</start>

</interval>

<randomizeDuration>60</randomizeDuration>

<randomizeStart>60</randomizeStart>

<deviceCategory>0008</deviceCategory>

<drProgramMandatory>true</drProgramMandatory>

<loadShiftForward>true</loadShiftForward>

<SetPoint>

<heatingSetpoint>10000</heatingSetpoint>

</SetPoint>

</EndDeviceControl>

13

Client cancels the event.

14

Client responds with the specific instance of the EndDeviceControl with an updated EventStatus of “Canceled”. Client sends the following request:

POST /rsp HTTP/1.1 Host: {hostname}

Content-Type: application/sep+xml Content-Length: {contentLength}

<DrResponse xmlns="urn:ieee:std:2030.5:ns">

<createdDateTime>1235100</createdDateTime>

<endDeviceLFDI>C0FFEE00</endDeviceLFDI>

<status>6</status>

<subject>CAFEFEED</subject>

</DrResponse>

15

Response server replies with Status 201 created:

HTTP/1.1 201 Created
