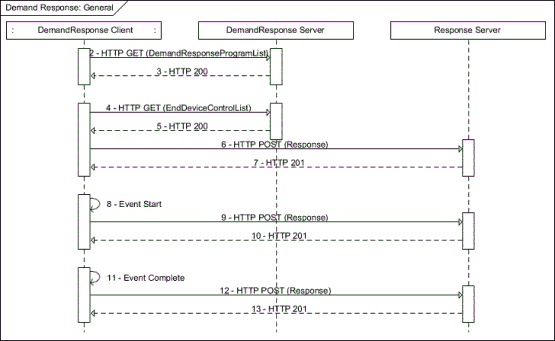

Step

Description

1

The client has discovered its EndDevice instance on the server with a link to its FunctionSetAssignments. Within its FunctionSetAssignments, the client discovers it is part of a DemandResponseProgram. The

enrollment is provided out of band.

2

Client GETs the list of DemandResponsePrograms from the Demand Response Load Control (DRLC) server.

Client sends the following request:

GET /drp?l=2 HTTP/1.1 Host: {hostname}

Accept: application/sep+xml

Table C.9—POX example: Demand response: general (continued)

Step

Description

3

DemandResponse server responds with the list of DemandResponsePrograms. Server sends the following response:

HTTP/1.1 200 OK

Content-Type: application/sep+xml Content-Length: {contentLength}

<DemandResponseProgramList all="2" results="2" subscribable="0" xmlns="urn:ieee:std:2030.5:ns">

<DemandResponseProgram href="/drp/1">

<mRID>0FB7</mRID>

<description>Operation X</description>

<ActiveEndDeviceControlListLink all="0" href="/drp/1/aedc"/>

<EndDeviceControlListLink all="1" href="/drp/1/edc"/>

<primacy>0</primacy>

</DemandResponseProgram>

<DemandResponseProgram href="/drp/2">

<mRID>80000001</mRID>

<description>The Wackness</description>

<ActiveEndDeviceControlListLink all="0" href="/drp/2/aedc"/>

<EndDeviceControlListLink all="0" href="/drp/2/edc"/>

<primacy>1</primacy>

</DemandResponseProgram>

</DemandResponseProgramList>

4

Client GETs the list of EndDeviceControls from the DRLC server for the desired DemandResponseProgram.

Client sends the following request:

GET /drp/1/edc HTTP/1.1 Host: {hostname}

Accept: application/sep+xml

Table C.9—POX example: Demand response: general (continued)

Step

Description

5

DemandResponse server responds with the list of EndDeviceControls. Server sends the following response:

HTTP/1.1 200 OK

Content-Type: application/sep+xml Content-Length: {contentLength}

<EndDeviceControlList all="1" results="1" subscribable="0" xmlns="urn:ieee:std:2030.5:ns">

<EndDeviceControl href="/drp/1/edc" replyTo="{hostname}/rsp" responseRequired="01" subscribable="0">

<mRID>CAFEFEED</mRID>

<description>Emergency One Hour Coffee Brew</description>

<creationTime>1234556</creationTime>

<EventStatus>

<currentStatus>0</currentStatus>

<dateTime>1234556</dateTime>

<potentiallySuperseded>false</potentiallySuperseded>

<reason>Need Caffeine Soon</reason>

</EventStatus>

<interval>

<duration>360</duration>

<start>1234900</start>

</interval>

<randomizeDuration>60</randomizeDuration>

<randomizeStart>60</randomizeStart>

<deviceCategory>08</deviceCategory>

<drProgramMandatory>true</drProgramMandatory>

<loadShiftForward>true</loadShiftForward>

<SetPoint>

<heatingSetpoint>10000</heatingSetpoint>

</SetPoint>

</EndDeviceControl>

</EndDeviceControlList>

6

For each EndDeviceControl with ResponseRequired Bit 0 set, the client POSTs a response with a status of “Event Received” to the response resource specified by the replyTo field in the EndDeviceControl.

Client sends the following:

POST /rsp HTTP/1.1 Host: {hostname}

Content-Type: application/sep+xml Content-Length: {contentLength}

<DrResponse xmlns="urn:ieee:std:2030.5:ns">

<createdDateTime>1234560</createdDateTime>

<endDeviceLFDI>C0FFEE00</endDeviceLFDI>

<status>1</status>

<subject>CAFEFEED</subject>

</DrResponse>

7

Response server replies with Status 201 Created:

HTTP/1.1 201 Created

8

Client begins the event at the defined start time.

Table C.9—POX example: Demand response: general (continued)

Step

Description

9

Client POSTs a response with a status of “Event Started” to the response resource specified by the replyTo field in the EndDeviceControl.

Client sends the following:

POST /rsp HTTP/1.1 Host: {hostname}

Content-Type: application/sep+xml Content-Length: {contentLength}

<DrResponse xmlns="urn:ieee:std:2030.5:ns">

<createdDateTime>1234900</createdDateTime>

<endDeviceLFDI>C0FFEE00</endDeviceLFDI>

<status>2</status>

<subject>CAFEFEED</subject>

</DrResponse>

10

Response server responds with Status 201 Created:

HTTP/1.1 201 Created

11

Client completes the event.

12

Client POSTs a response with a status of “Event Completed” to the response resource specified by the replyTo field in the EndDeviceControl.

Client sends the following:

POST /rsp HTTP/1.1 Host: {hostname}

Content-Type: application/sep+xml Content-Length: {contentLength}

<DrResponse xmlns="urn:ieee:std:2030.5:ns">

<createdDateTime>1235260</createdDateTime>

<endDeviceLFDI>C0FFEE00</endDeviceLFDI>

<status>3</status>

<subject>CAFEFEED</subject>

</DrResponse>

13

Response server responds with Status 201 Created:

HTTP/1.1 201 Created
