Step

Description

1

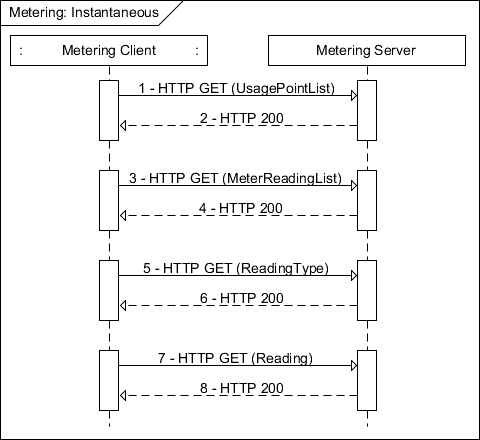

Client GETs the UsagePointList from the Metering server.

Note: If directed through FunctionSetAssignments to a particular UsagePoint, these first two steps would be skipped.

Client sends the following request:

GET /upt HTTP/1.1 Host: {hostname}

Accept: application/sep+xml

2

Metering server replies with UsagePointList. A typical response looks like:

HTTP/1.1 200 OK

Content-Type: application/sep+xml Content-Length: {contentLength}

<UsagePointList all="1" href="/upt" results="1" subscribable="0" xmlns="urn:ieee:std:2030.5:ns">

<UsagePoint href="/upt/0">

<mRID>0B00006CC8</mRID>

<description>Usage Point</description>

<roleFlags>12</roleFlags>

<serviceCategoryKind>0</serviceCategoryKind>

<status>1</status>

<MeterReadingListLink all="6" href="/upt/0/mr"/>

</UsagePoint>

</UsagePointList>

3

Client GETs the MeterReadingList from the Metering server.

Note: This and the next three steps may be repeated for each page required to read the entire list. For this example, we are requesting up to ten MeterReadings at a time. Subsequent GETs would increment the “s” query parameter by ten or however many list items are returned.

Client sends the following request:

GET /upt/0/mr?s=0&l=10 HTTP/1.1 Host: {hostname}

Accept: application/sep+xml

Table C.14—POX example: Metering instantaneous (continued)

Step

Description

4

Metering server replies with up to ten MeterReading instances. Only six are returned in this case as indicated by the MeterReadingListLink “all” attribute in step 2.

A typical response looks like:

HTTP/1.1 200 OK

Content-Type: application/sep+xml Content-Length: {contentLength}

<MeterReadingList all="6" href="/upt/0/mr" results="6" subscribable="0" xmlns="urn:ieee:std:2030.5:ns">

<MeterReading href="/upt/0/mr/5">

<mRID>1500006CC8</mRID>

<description>Instantaneous Reading for VAR’s</description>

<ReadingLink href="/upt/0/mr/5/r"/>

<ReadingTypeLink href="/upt/0/mr/5/rt"/>

</MeterReading>

<MeterReading href="/upt/0/mr/4">

<mRID>1400006CC8</mRID>

<description>Instantaneous Reading for Wh</description>

<ReadingLink href="/upt/0/mr/4/r"/>

<ReadingTypeLink href="/upt/0/mr/4/rt"/>

</MeterReading>

<MeterReading href="/upt/0/mr/3">

<mRID>1200006CC8</mRID>

<description>Interval Reading for VAR’s</description>

<ReadingSetListLink all="24" href="/upt/0/mr/3/rs"/>

<ReadingTypeLink href="/upt/0/mr/3/rt"/>

</MeterReading>

<MeterReading href="/upt/0/mr/2">

<mRID>1000006CC8</mRID>

<description>Interval Reading for Wh</description>

<ReadingSetListLink all="24" href="/upt/0/mr/2/rs"/>

<ReadingTypeLink href="/upt/0/mr/2/rt"/>

</MeterReading>

<MeterReading href="/upt/0/mr/1">

<mRID>0E00006CC8</mRID>

<description>Cumulative Reading for VAR’s</description>

<ReadingLink href="/upt/0/mr/1/r"/>

<ReadingSetListLink all="1" href="/upt/0/mr/1/rs"/>

<ReadingTypeLink href="/upt/0/mr/1/rt"/>

</MeterReading>

<MeterReading href="/upt/0/mr/0">

<mRID>0C00006CC8</mRID>

<description>Cumulative Reading for Wh</description>

<ReadingLink href="/upt/0/mr/0/r"/>

<ReadingSetListLink all="1" href="/upt/0/mr/0/rs"/>

<ReadingTypeLink href="/upt/0/mr/0/rt"/>

</MeterReading>

</MeterReadingList>

5

Client GETs the ReadingType from the Metering server.

Note: Step 5 and step 6 may be repeated for each MeterReading returned in step 4 to identify the MeterReading of interest by iterating through the MeterReadings returned in step 4.

Client sends the following request:

GET /upt/0/mr/4/rt HTTP/1.1 Host: {hostname}

Accept: application/sep+xml

Table C.14—POX example: Metering instantaneous (continued)

Step

Description

6

Metering server replies with ReadingType. A typical response looks like:

HTTP/1.1 200 OK

Content-Type: application/sep+xml Content-Length: {contentLength}

<ReadingType href="/upt/0/mr/4/rt" xmlns="urn:ieee:std:2030.5:ns">

<accumulationBehaviour>12</accumulationBehaviour>

<commodity>1</commodity>

<dataQualifier>0</dataQualifier>

<flowDirection>1</flowDirection>

<kind>12</kind>

<numberOfConsumptionBlocks>0</numberOfConsumptionBlocks>

<numberOfTouTiers>0</numberOfTouTiers>

<phase>40</phase>

<powerOfTenMultiplier>3</powerOfTenMultiplier>

<uom>38</uom>

</ReadingType>

Note: Once the desired ReadingType is identified we proceed to the next step.

7

Client GETs the Reading from the Metering server.

Note: Because the instantaneous value is in the resource indicated in the ReadingLink of MeterReading we can read that resource.

Client sends the following request:

GET /upt/0/mr/4/r HTTP/1.1 Host: {hostname}

Accept: application/sep+xml

8

Metering server replies with the Reading. A typical response looks like:

HTTP/1.1 200 OK

Content-Type: application/sep+xml Content-Length: {contentLength}

<Reading href="/upt/0/mr/4/r" xmlns="urn:ieee:std:2030.5:ns">

<value>14</value>

</Reading>

Note: Subsequent reads of this URI will return more recent data. If a GET fails on this resource, then this entire procedure would be repeated to reestablish the correct URI.
