C.6 Discovery: Undirected without Function Set Assignment

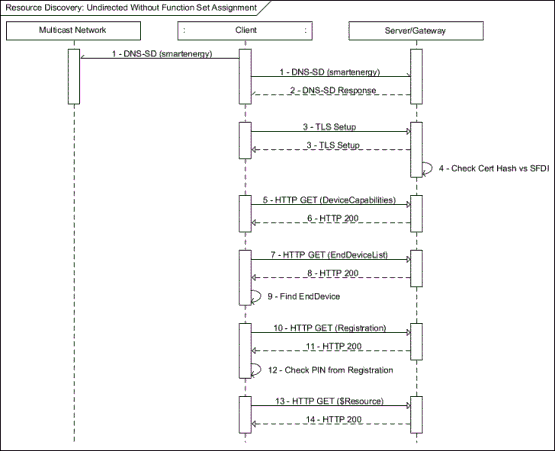

Figure C.5—Discovery undirected without Function Set Assignment
NOTE—The client discovers all servers and searches through the records to find a server with a validated EndDevice record for itself. The EndDevice record is not found to have a FunctionSetAssignmentListLink with a FunctionSetAssignment record that contains the desired resource. The client searches for the desired resource in EndDevice or in DeviceCapabilities.
Table C.6—POX example: Discovery undirected without Function Set Assignment
Step | Description |
1 | (See registration: Local example) |
2 | (See registration: Local example) |
3 | (See registration: Local example) |
4 | (See registration: Local example) |
5 | (See resource discovery: Without Function Set Assignment example) |
6 | (See resource discovery: Without Function Set Assignment example) |
7 | (See registration: Local example) |
8 | (See registration: Local example) |
9 | The client searches through the list of EndDevice records to find one with a matching SFDI. If not found, the server contains no records for the client. |
10 | (See registration: Remote example) |
11 | (See registration: Remote example) |
12 | (See registration: Remote example) |
13 | (See resource discovery: Without Function Set Assignment example) |
14 | (See resource discovery: Without Function Set Assignment example) |
